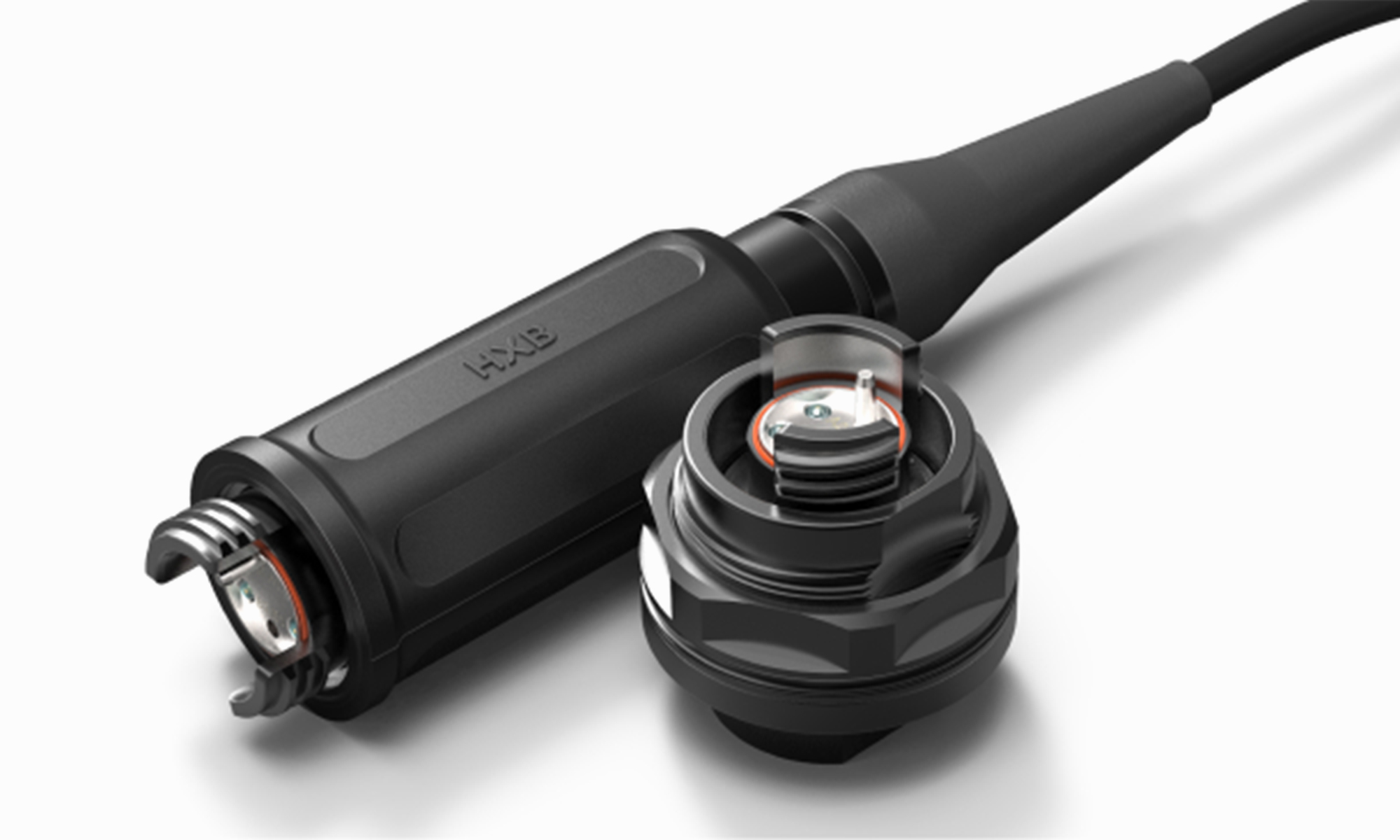

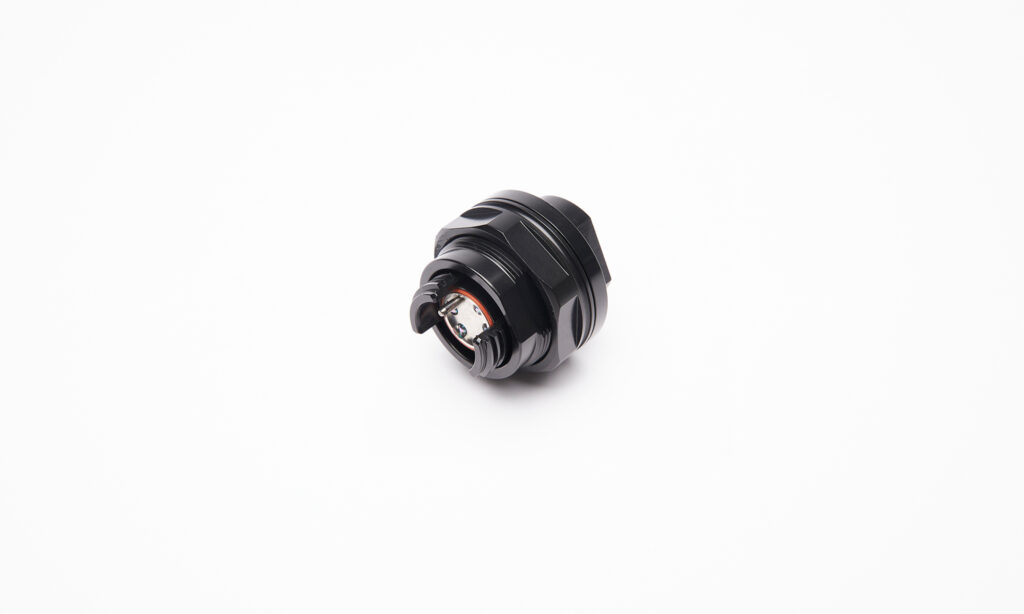

HXB Connector Series
Fiber Optic Connectors and Cable Assemblies for Harsh Environment Applications
The HXB Connectors, featuring expanded beam technology, hermaphroditic connections, and rugged construction for field deployment, have been designed for harsh environment applications such as military tactical communications, avionics, offshore systems, outside broadcast, mining, and plants.
The expanded beam technology uses expanded and collimated beams to couple optical fibers without any contact. It could allow for optics to be used in areas that have been quite restrictive due to the presence of damage or contamination at the fiber end. The hermaphroditic connector design enables fast deployment by daisy-chaining multiple cable segments.
HXB Product Range:
• Mini Size – HXB 11
– 1, 2, or 4 channels
• Senior Size – HXB 15
– 2 to 10 channels
• Junior Size – HXB 13
– 2 and 4 channels• Senior Size – HXB 15
– 2 to 10 channels
• Maxi Size – HXB 17
– 12, 14, and 16 channels
For more information on how to order or to obtain a price quote on our HXB Connectors, please call us at +82-2-864-7280 or email sales@xbeamtech.com
FEATURES
- Advanced expanded beam technology
- Rugged, field-deployable fiber optic connector
- Hermaphroditic interconnection
- 1 to 14 optical channels
- Singlemode (SM) or Multimode (MM)
- Optical/electric hybrid configurations available
- Custom configurations available
- Environmental sealing (IPX8)
- Very high resistance to vibration, shock, environmental effects, dust, and debris
- Easy to clean, no special tools required
- No adapters necessary
- Cable assemblies with plugs and bulkheads
APPLICATIONS
- Military Communications
- Avionics, Marine
- Mining, Oil and Gas
- Rail, Transport
- Broadcast
- Telecommunications
- Medical
- Industrial
SPECIFICATIONS
Optical Performance
- Insertion Loss
- Typical 0.8 – 1.8 dB @ 1310, 1550 nm
Typical 0.5 – 1.0 dB @ 850, 1300 nm - Singlemode
Multimode
- Return Loss
- > 32 dB
- Singlemode
Mechanical Performance
- Durability
- 3,000 mating cycles
- Operating Temperature
- -40 °C to 85 °C
- Storage Temperature
- -55 °C to 85 °C
- Water Immersion
- Up to 15 m
- Free Fall
- 500 falls @ 1.2 m
- Vibration
- 10 – 500 Hz, 3 axis, 0.75 mm, 10 g
- Shock
- 11 ms, 3 axis, 50 g

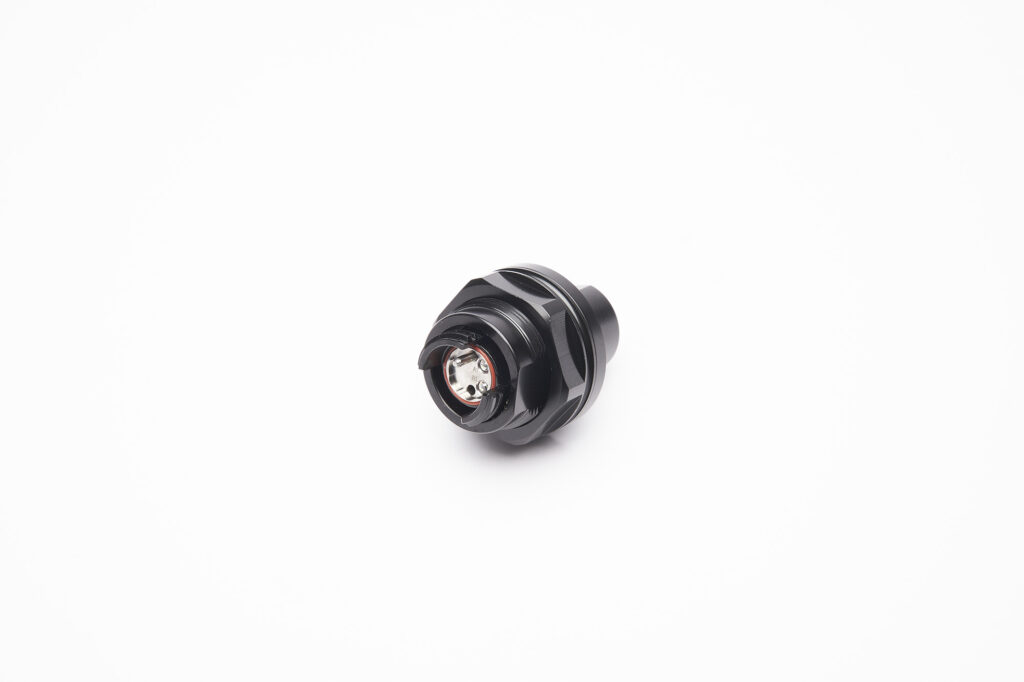

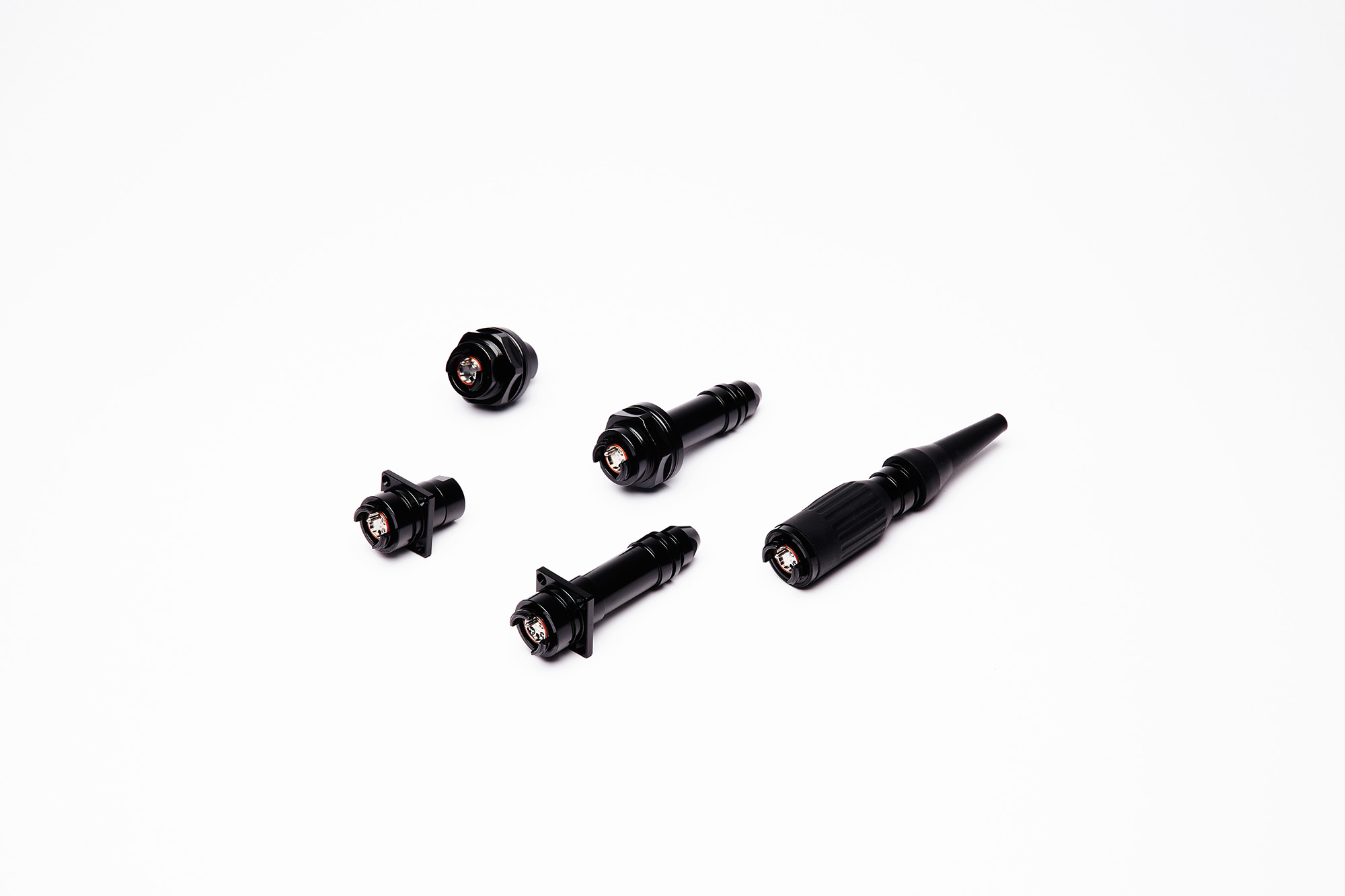

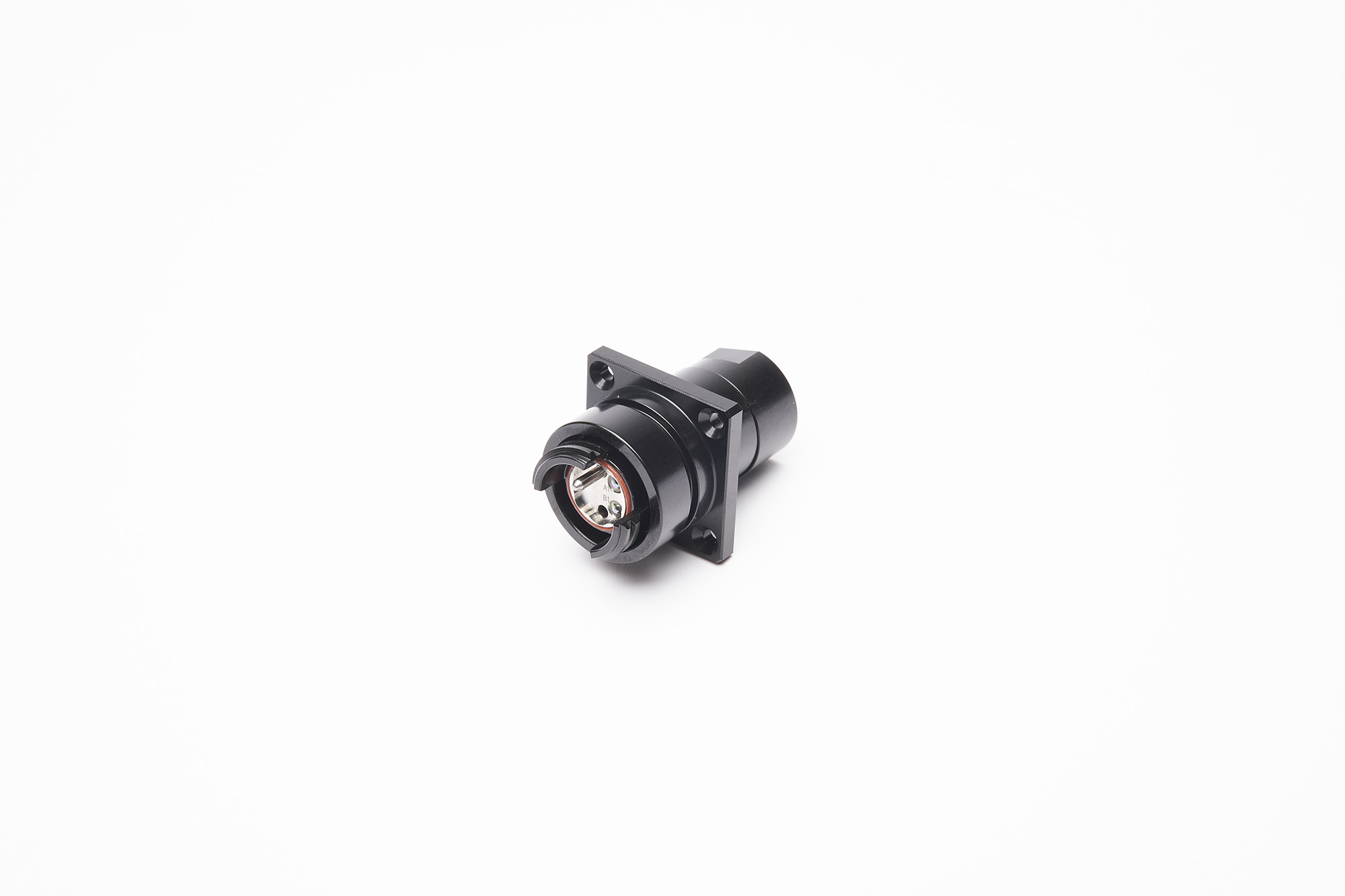

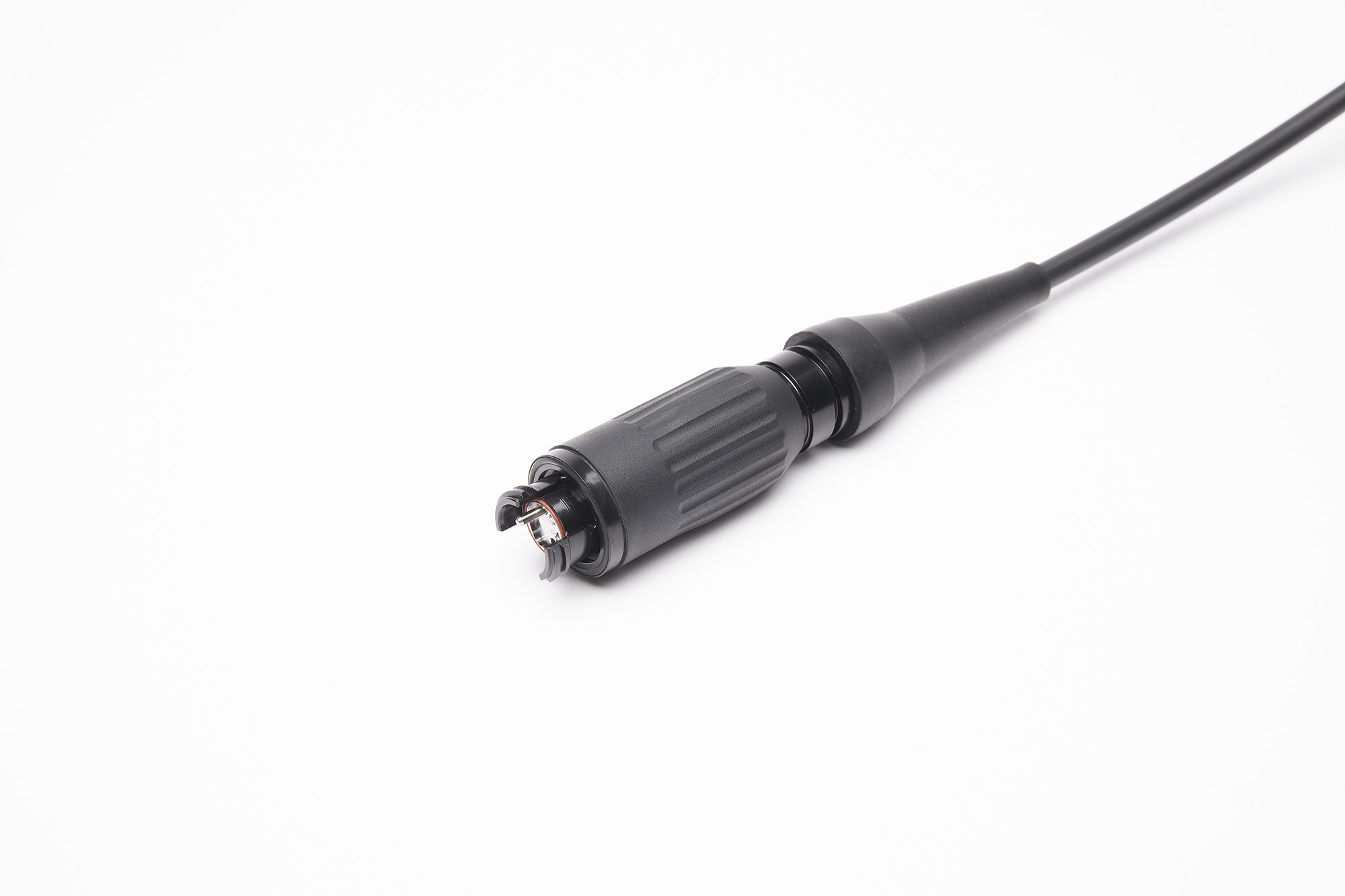

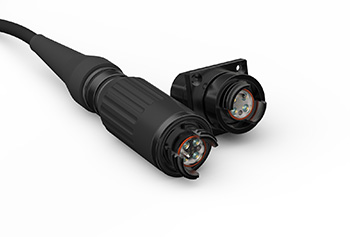

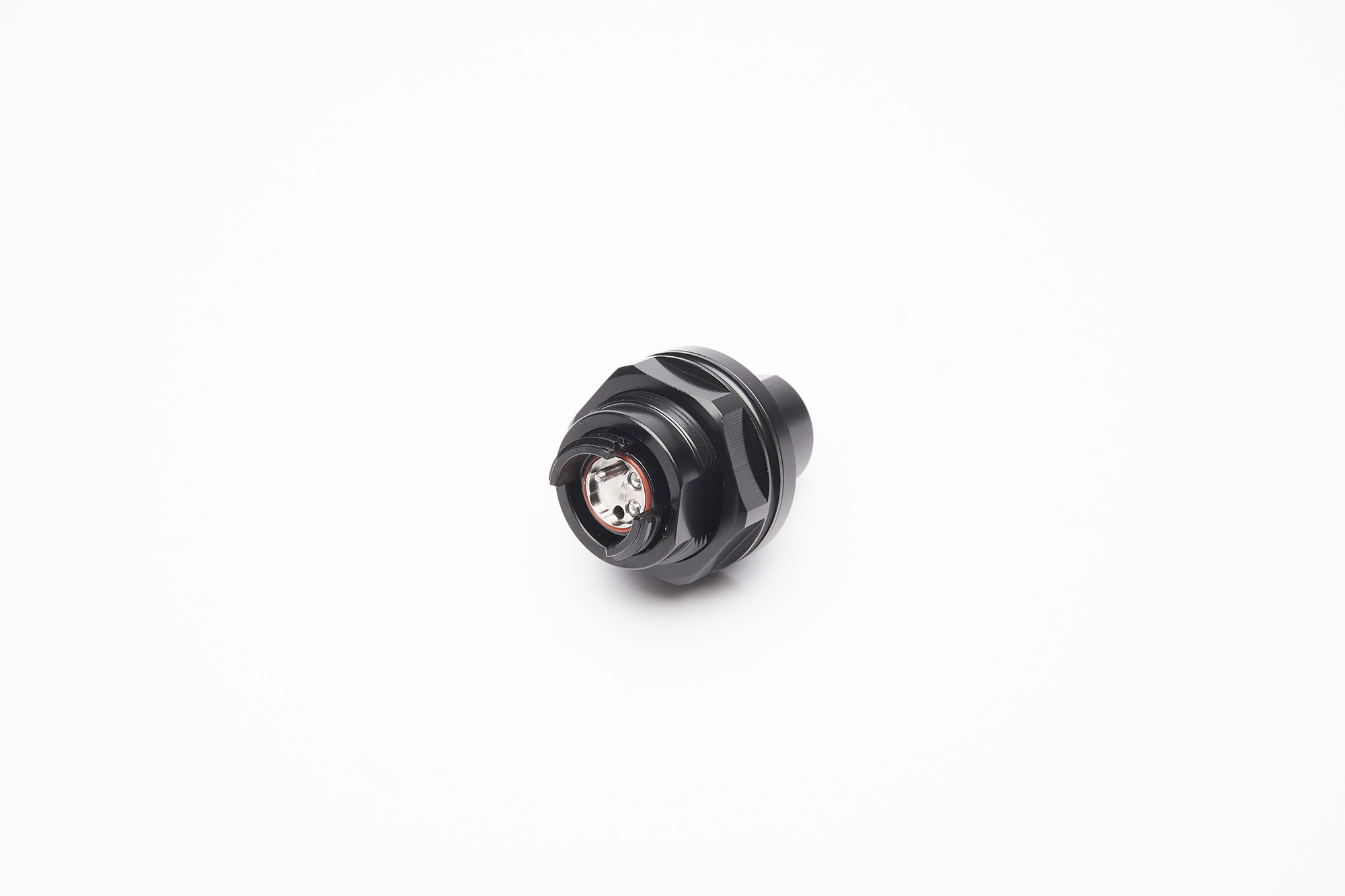

HXB11
The HXB11 Connectors, featuring expanded beam technology, hermaphroditic connections, and rugged construction for field deployment, have been designed for harsh environment applications such as military tactical communications, avionics, offshore systems, outside broadcast, mining, and plants. The expanded beam technology uses expanded and collimated beams to couple optical fibers without any contact. It could allow for optics to be used in areas that have been quite restrictive due to the presence of damage or contamination at the fiber end. The hermaphroditic connector design enables fast deployment by daisy-chaining multiple cable segments.
DOWNLOAD
FEATURES
- Advanced expanded beam technology
- Rugged, field-deployable fiber optic connector
- Hermaphroditic interconnection
- 1, 2, and 4 optical channels
- Singlemode (SM) or Multimode (MM)
- Custom configurations available
- Environmental sealing (IPX8)
- Very high resistance to vibration, shock,
environmental effects, dust, and debris - Easy to clean, no special tools required
- No adapters necessary
- Cable assemblies with plugs and bulkheads
APPLICATIONS
- Military Communications
- Avionics, Marine
- Mining, Oil and Gas
- Rail, Transport
- Broadcast, AV
- Telecommunications
- Medical
- Industrial
SPECIFICATIONS
Optical Performance
- Insertion Loss
- Typical 0.8 – 1.8 dB @ 1310, 1550 nm
Typical 0.5 – 1.0 dB @ 850, 1300 nm - Singlemode
Multimode
- Return Loss
- > 32 dB
- Singlemode
Mechanical Performance
- Durability
- 3,000 mating cycles
- Operating Temperature
- -40 °C to 85 °C
- Storage Temperature
- -55 °C to 85 °C
- Water Immersion
- Up to 15 m
- Free Fall
- 500 falls @ 1.2 m
- Vibration
- 10 – 500 Hz, 3 axis, 0.75 mm, 10 g
- Shock
- 11 ms, 3 axis, 50 g

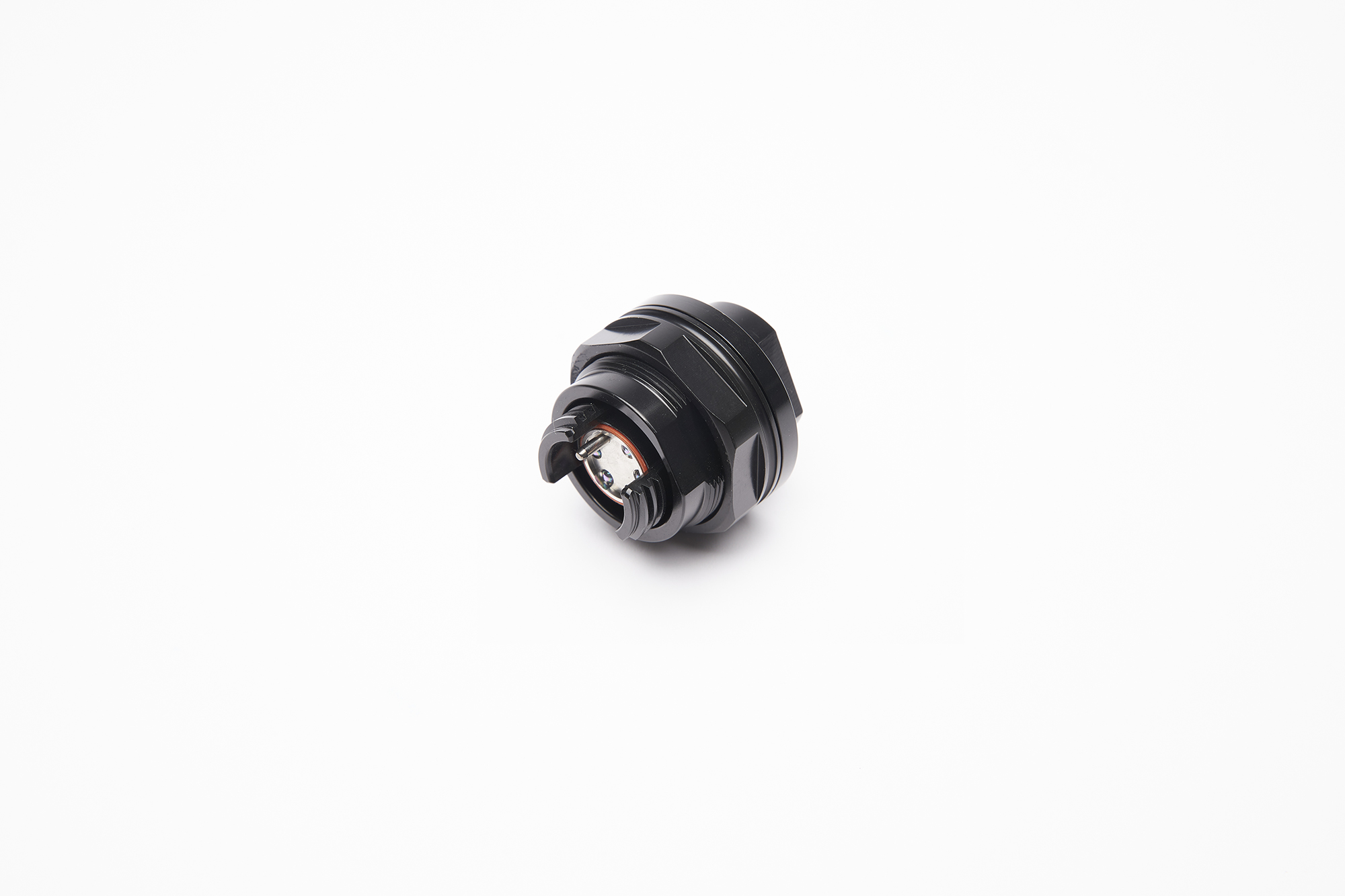

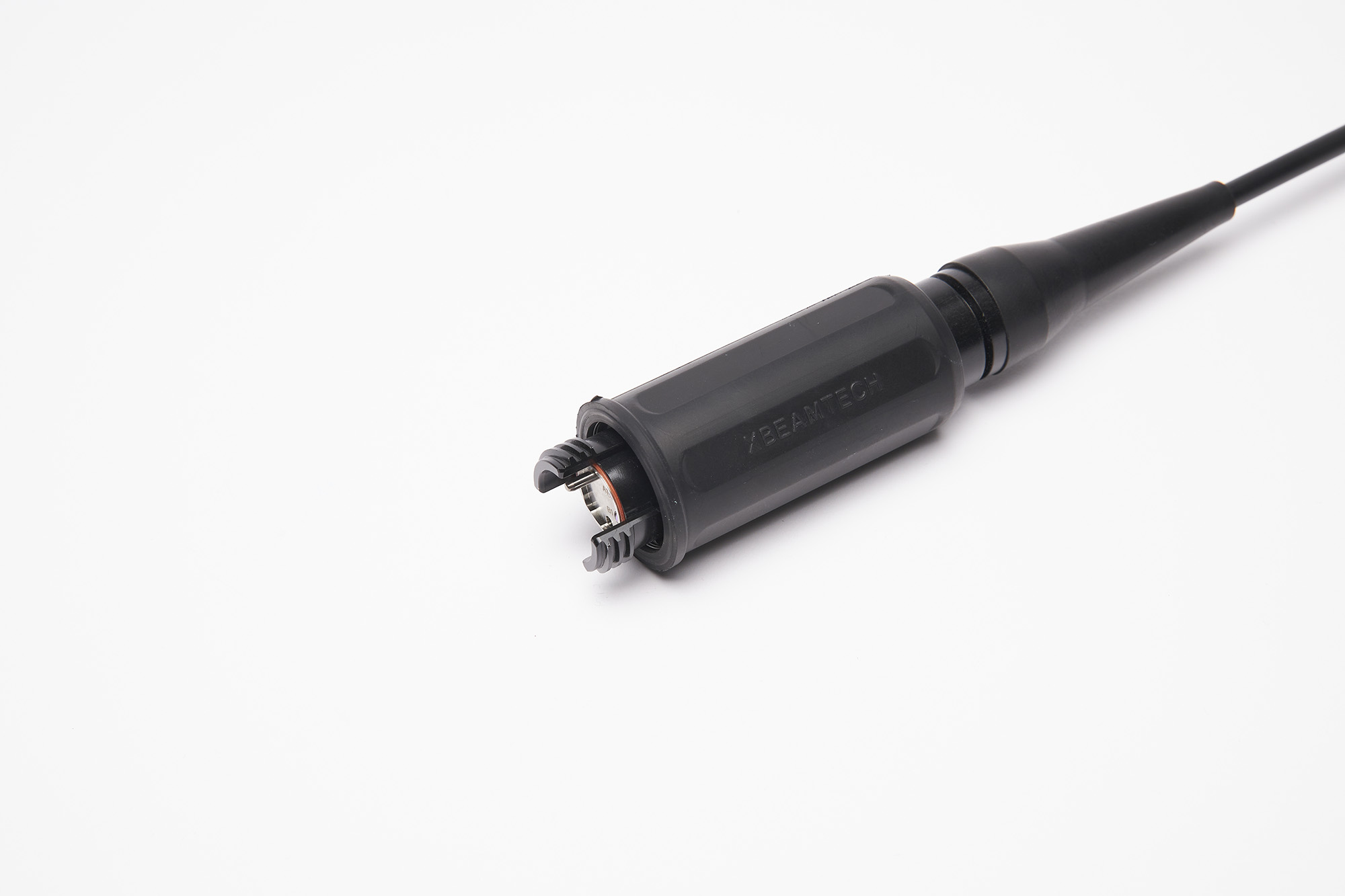

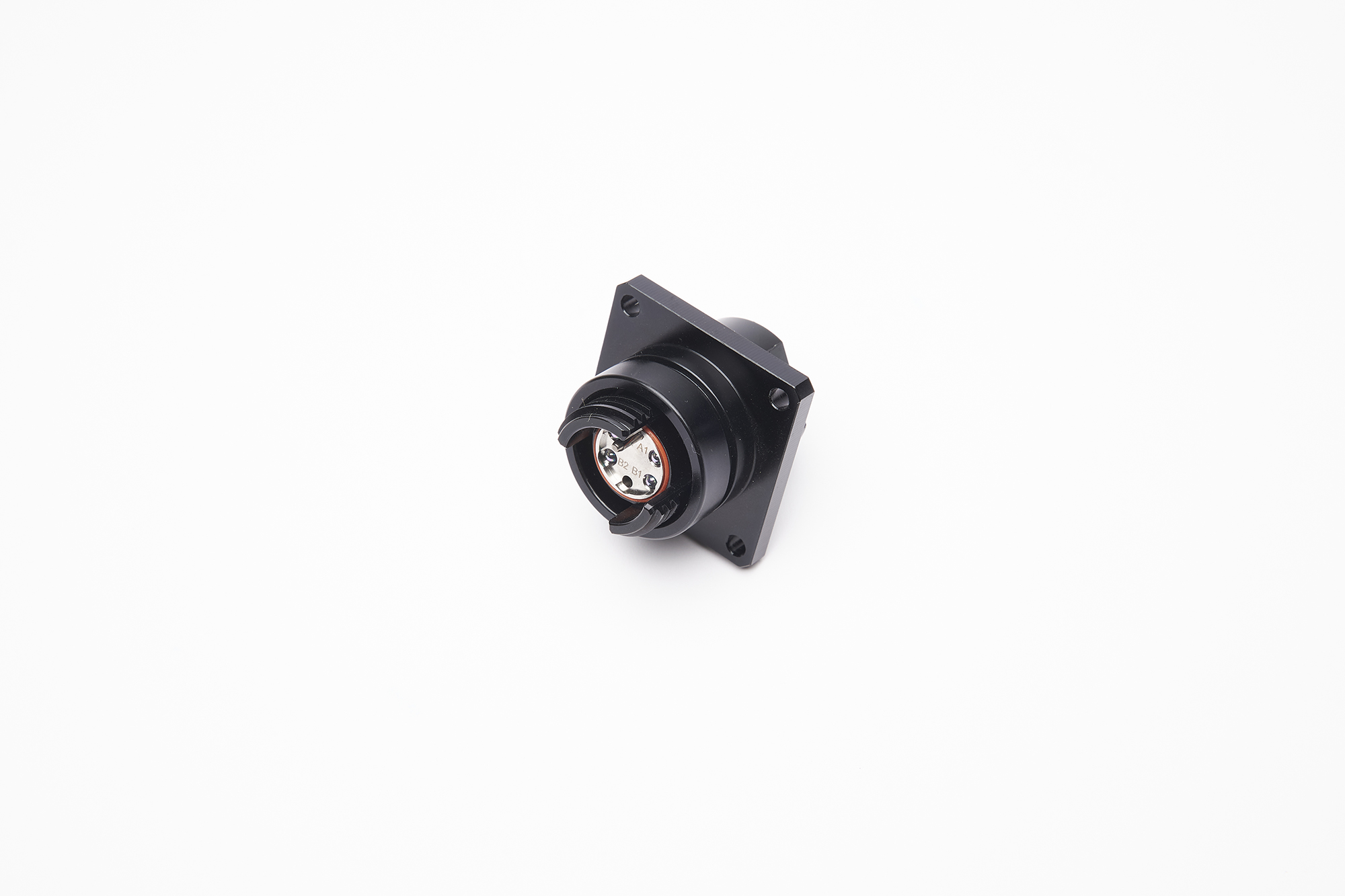

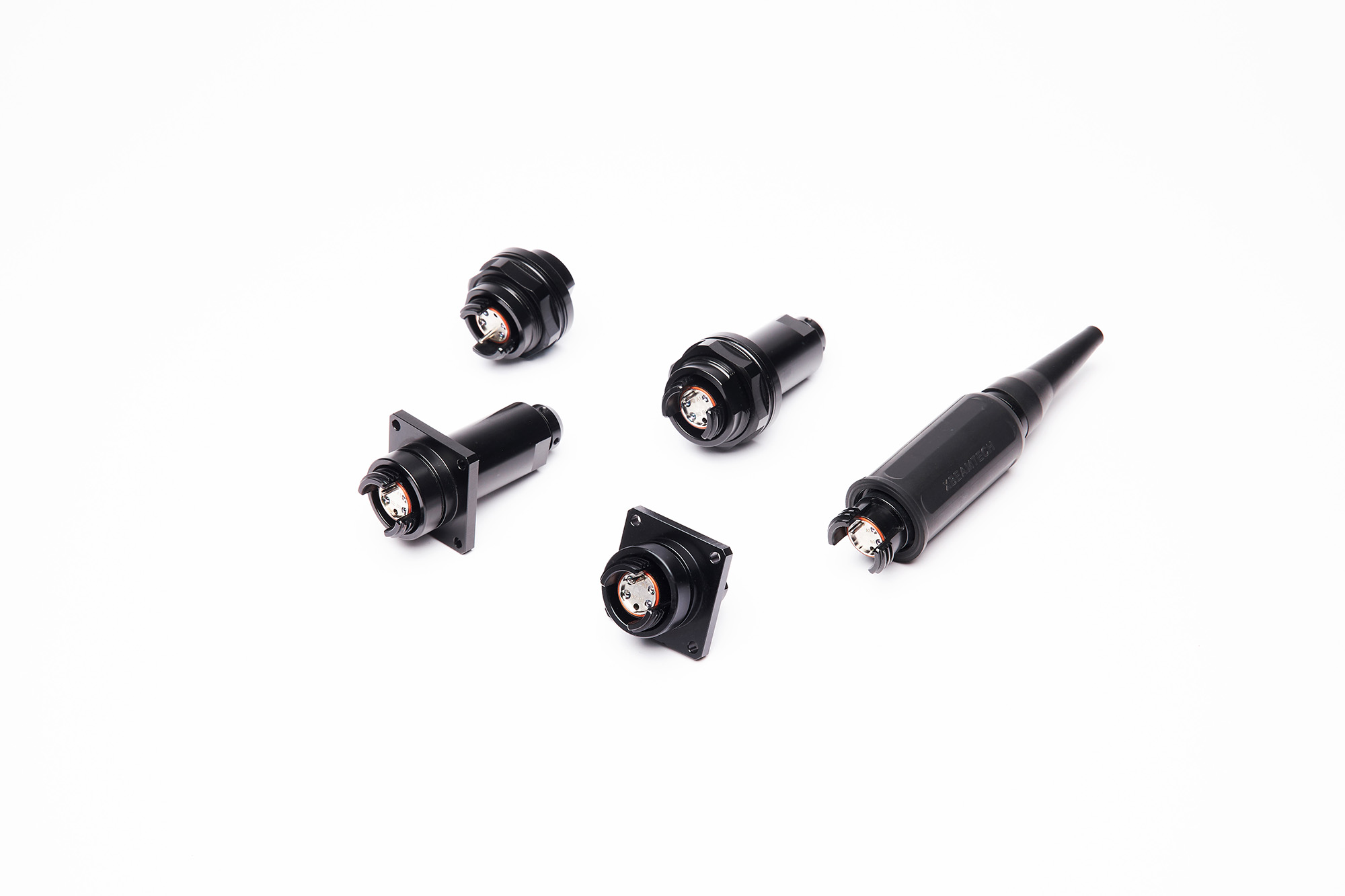

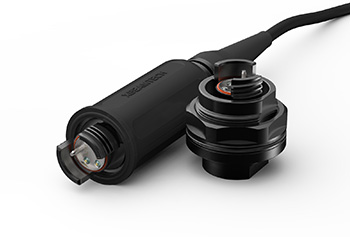

HXB13
The HXB13 Connectors, featuring expanded beam technology, hermaphroditic connections, rugged construction for field deployment, and hybrid configurability, have been designed for harsh environment applications such as military tactical communications, avionics, offshore systems, outside broadcast, mining and plant.
The expanded beam technology uses expanded and collimated beams to couple optical fibers without any contact. It could allow for optics to be used in areas that have been quite restrictive due to the presence of damage or contamination at the fiber ends. The hermaphroditic connector design enables fast deployment by daisy-chaining multiple cable segments. HXB13 connectors also enable the transfer of electrical signals or power using a hybrid insert configuration.
DOWNLOAD
FEATURES
- Advanced expanded beam technology
- Rugged, field-deployable fiber optic connector
- Hermaphroditic interconnection
- 2 and 4 optical channels
- Singlemode (SM) or Multimode (MM)
- Optical/electric hybrid configurations available
- Custom configurations available
- Environmental sealing (IPX8)
- Very high resistance to vibration, shock, environmental effects, dust, and debris
- Easy to clean, no special tools required
- No adapters necessary
- Cable assemblies with plugs and bulkheads
APPLICATIONS
- Military Communications
- Avionics, Marine
- Mining, Oil and Gas
- Rail, Transport
- Broadcast
- Telecommunications
- Medical
- Industrial
SPECIFICATIONS
Optical Performance
- Insertion Loss
- Typical 0.8 – 1.8 dB @ 1310, 1550 nm
Typical 0.5 – 1.0 dB @ 850, 1300 nm - Singlemode
Multimode
- Return Loss
- > 32 dB
- Singlemode
Mechanical Performance
- Durability
- 3,000 mating cycles
- Operating Temperature
- -40 °C to 85 °C
- Storage Temperature
- -55 °C to 85 °C
- Water Immersion
- Up to 15 m
- Free Fall
- 500 falls @ 1.2 m
- Vibration
- 10 – 500 Hz, 3 axis, 0.75 mm, 10 g
- Shock
- 11 ms, 3 axis, 50 g

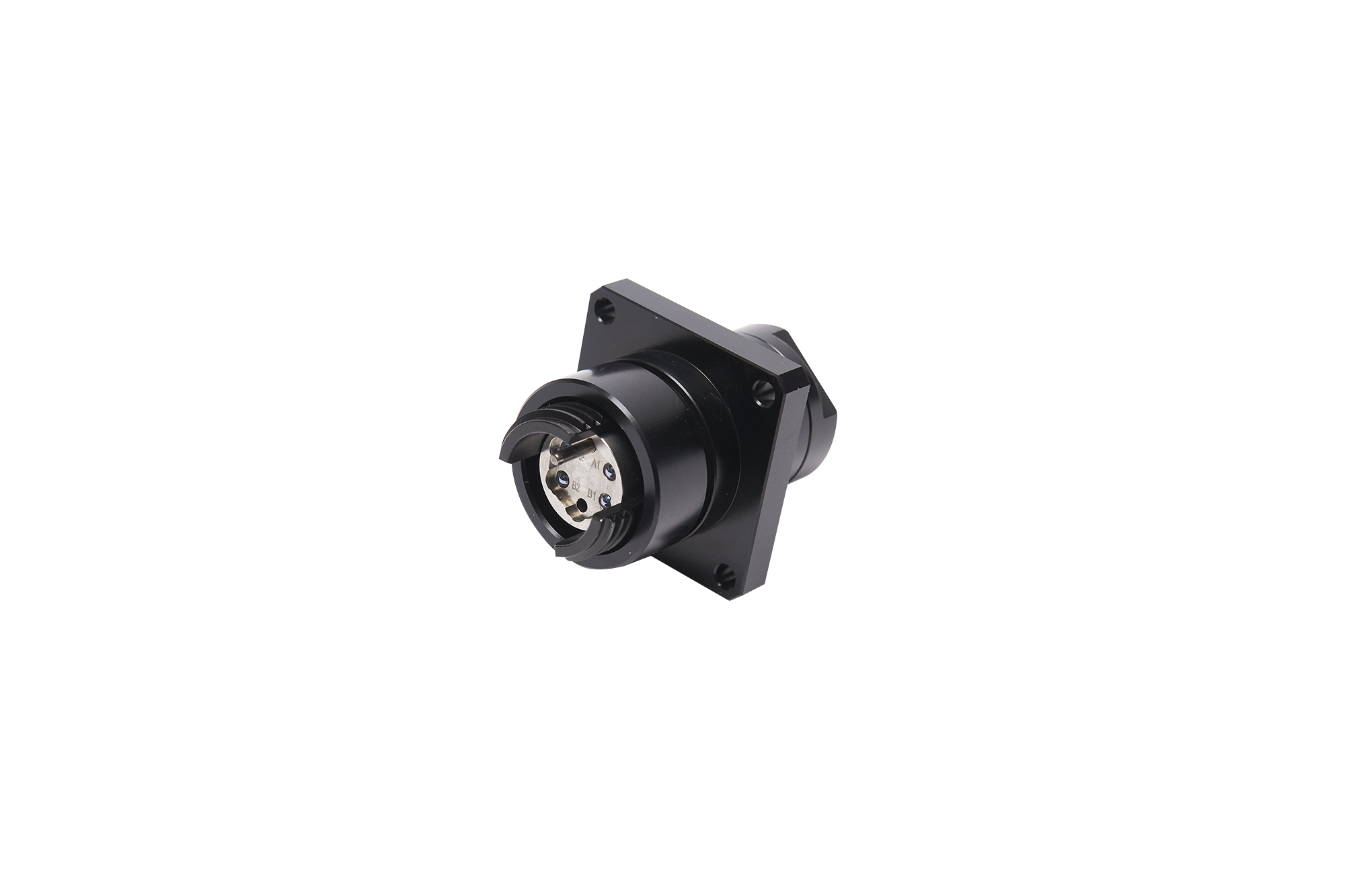

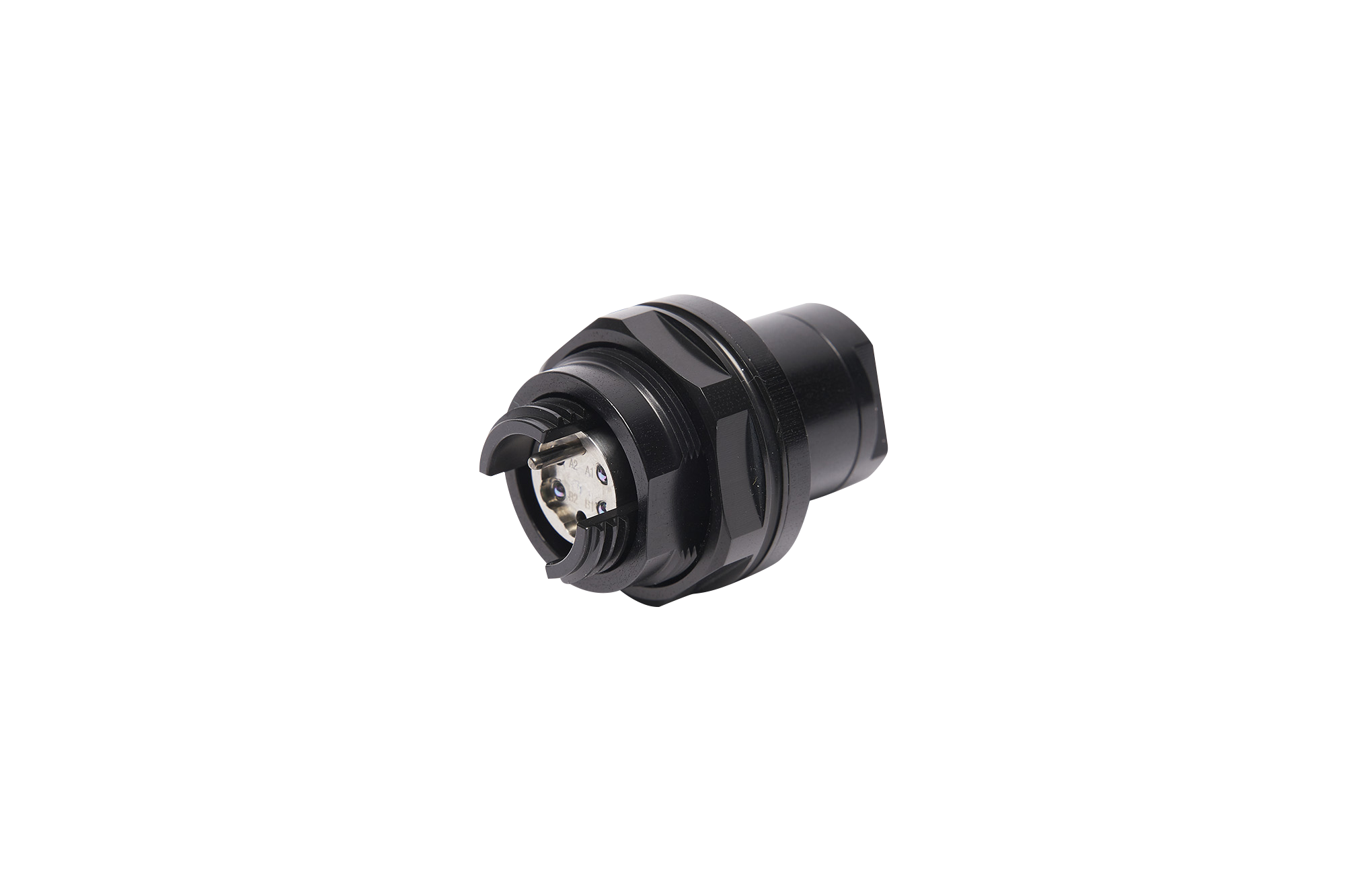

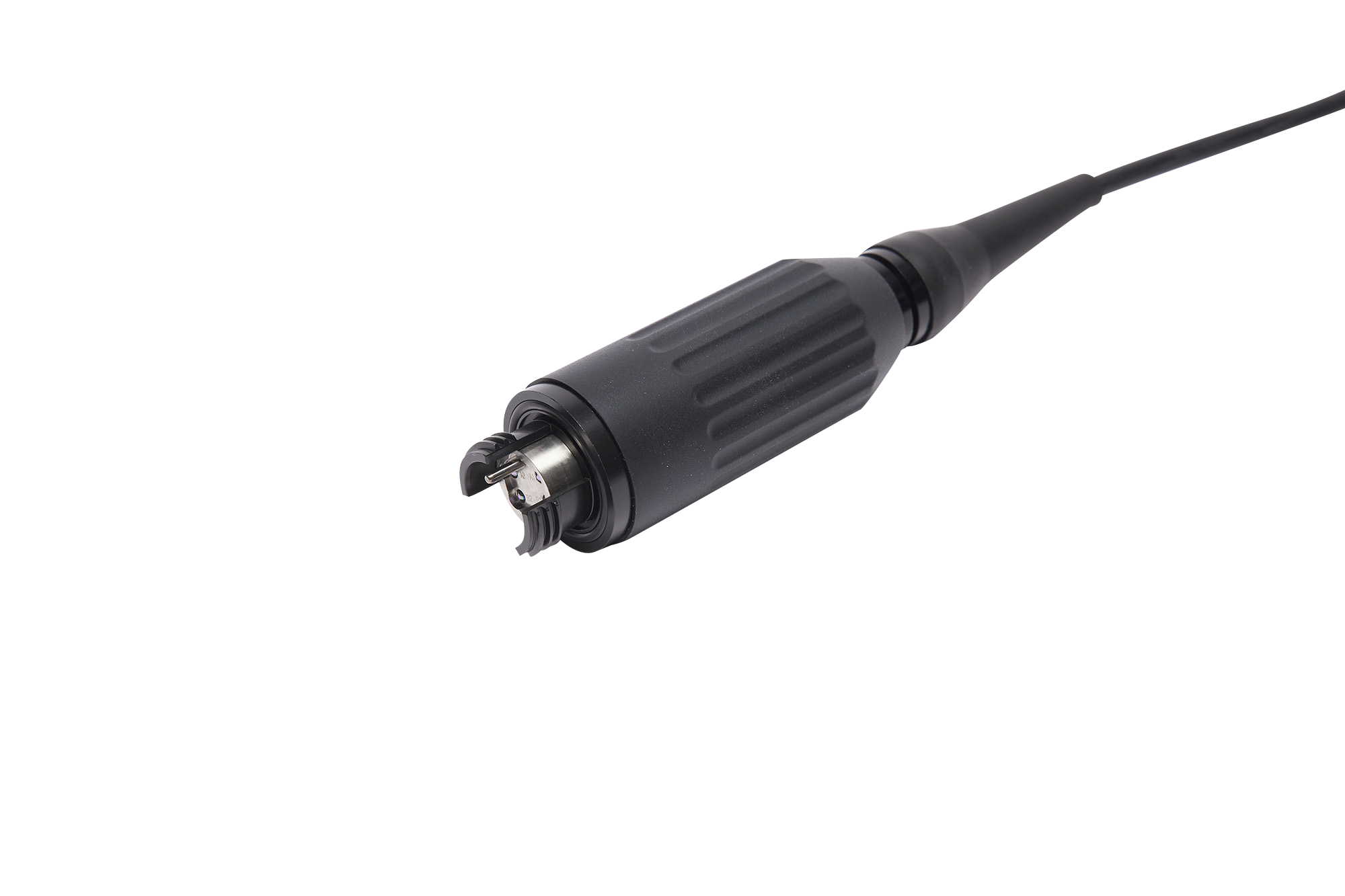

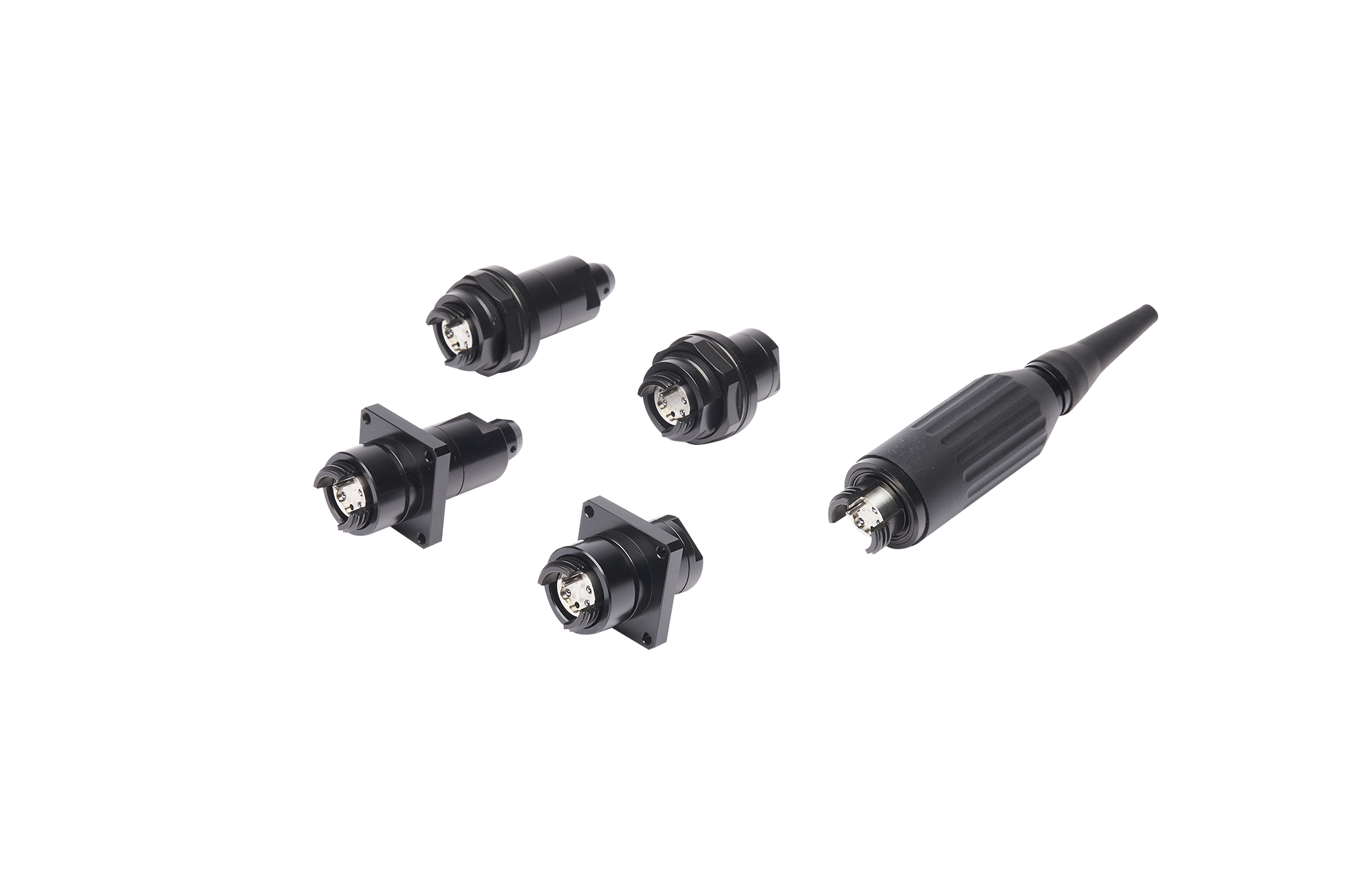

HXB15
The HXB15 Connectors, featuring expanded beam technology, hermaphroditic connections, rugged construction for field deployment, and hybrid configurability, have been designed for harsh environment applications such as military tactical communications, avionics, offshore systems, outside broadcast, mining and plant.
The expanded beam technology uses expanded and collimated beams to couple optical fibers without any contact. It could allow for optics to be used in areas that have been quite restrictive due to the presence of damage or contamination at the fiber ends. The hermaphroditic connector design enables fast deployment by daisy-chaining multiple cable segments. HXB15 connectors also enable the transfer of electrical signals or power using a hybrid insert configuration.
DOWNLOAD
FEATURES
- Advanced expanded beam technology
- Rugged, field-deployable fiber optic connector
- Hermaphroditic interconnection
- 2 to 10 optical channels
- Singlemode (SM) or Multimode (MM)
- Optical/electric hybrid configurations available
- Custom configurations available
- Environmental sealing (IPX8)
- Very high resistance to vibration, shock, environmental effects, dust, and debris
- Easy to clean, no special tools required
- No adapters necessary
- Cable assemblies with plugs and bulkheads
APPLICATIONS
- Military Communications
- Avionics, Marine
- Mining, Oil and Gas
- Rail, Transport
- Broadcast
- Telecommunications
- Medical
- Industrial
SPECIFICATIONS
Optical Performance
- Insertion Loss
- Typical 0.8 – 1.8 dB @ 1310, 1550 nm
Typical 0.5 – 1.0 dB @ 850, 1300 nm - Singlemode
Multimode
- Return Loss
- > 32 dB
- Singlemode
Mechanical Performance
- Durability
- 3,000 mating cycles
- Operating Temperature
- -40 °C to 85 °C
- Storage Temperature
- -55 °C to 85 °C
- Water Immersion
- Up to 15 m
- Free Fall
- 500 falls @ 1.2 m
- Vibration
- 10 – 500 Hz, 3 axis, 0.75 mm, 10 g
- Shock
- 11 ms, 3 axis, 50 g

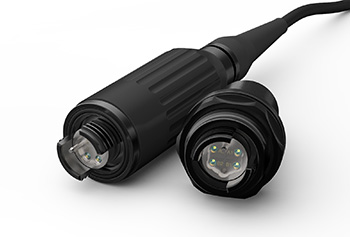

HXB17
The HXB17 Connectors, featuring expanded beam technology, hermaphroditic connections, rugged construction for field deployment, and hybrid configurability, have been designed for harsh environment applications such as military tactical communications, avionics, offshore systems, outside broadcast, mining, and plants.
The expanded beam technology uses expanded and collimated beams to couple optical fibers without any contact. It could allow for optics to be used in areas that have been quite restrictive due to the presence of damage or contamination at the fiber ends. The hermaphroditic connector design enables fast deployment by daisy-chaining multiple cable segments. HXB17 connectors also enable the transfer of electrical signals or power using a hybrid insert configuration.
DOWNLOAD
FEATURES
- Advanced expanded beam technology
- Rugged, field-deployable fiber optic connector
- Hermaphroditic interconnection
- 12, 14, and 16 optical channels
- Singlemode (SM) or Multimode (MM)
- Optical/electric hybrid configurations available
- Custom configurations available
- Environmental sealing (IPX8)
- Very high resistance to vibration, shock, environmental effects, dust, and debris
- Easy to clean, no special tools required
- No adapters necessary
- Cable assemblies with plugs and bulkheads
APPLICATIONS
- Military Communications
- Avionics, Marine
- Mining, Oil and Gas
- Rail, Transport
- Broadcast
- Telecommunications
- Medical
- Industrial
SPECIFICATIONS
Optical Performance
- Insertion Loss
- Typical 0.8 – 1.8 dB @ 1310, 1550 nm
Typical 0.5 – 1.0 dB @ 850, 1300 nm - Singlemode
Multimode
- Return Loss
- > 32 dB
- Singlemode
Mechanical Performance
- Durability
- 3,000 mating cycles
- Operating Temperature
- -40 °C to 85 °C
- Storage Temperature
- -55 °C to 85 °C
- Water Immersion
- Up to 15 m
- Free Fall
- 500 falls @ 1.2 m
- Vibration
- 10 – 500 Hz, 3 axis, 0.75 mm, 10 g
- Shock
- 11 ms, 3 axis, 50 g
